Description
Style number: UL21064
Rated temperature: 80°C
Rated voltage: 30V
Packaging Details: 305 meters per reel.
Port: Shenzhen

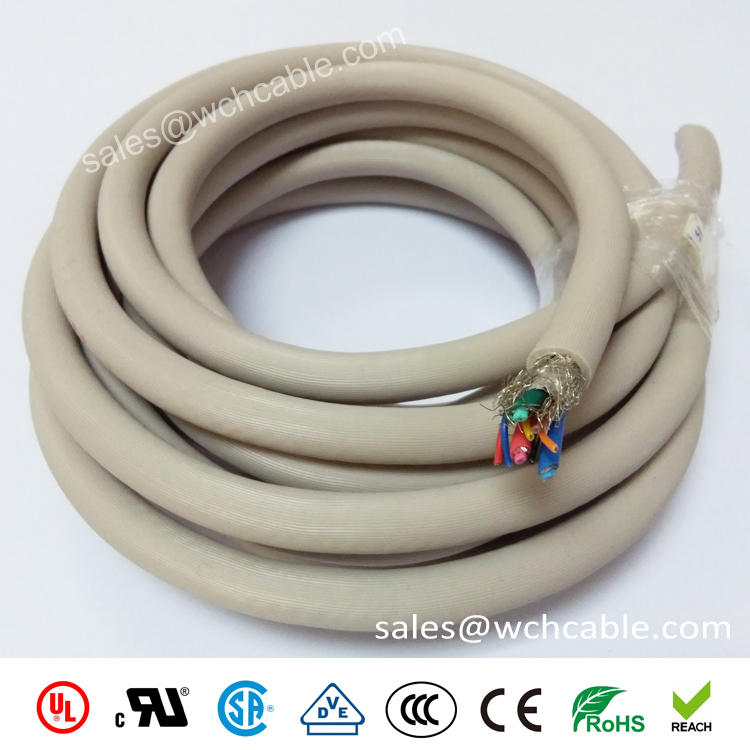

UL21064 Halogen Free ABC Motor Applied LSZH Cable
| Style Number |
Cores | Conductor | Insulation Thickness |
Insulation Diameter |
Spiral Shield |
Jacket Thickness |
Overall Diameter |
Conductor Resistance |
|
| AWG | No/mm | mm | mm | No/mm | mm | mm | Ω/KM | ||
| UL21064 | 2C | 30 | 7/0.100 | 0.25 | 0.80 | 45/0.10 | 0.40 | 2.80 | 381.00 |
| 2C | 28 | 7/0.127 | 0.25 | 0.90 | 48/0.10 | 0.40 | 2.80 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.25 | 1.00 | 50/0.10 | 0.40 | 3.10 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.25 | 1.10 | 50/0.12 | 0.40 | 3.30 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.25 | 1.30 | 62/0.12 | 0.40 | 3.60 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.25 | 1.50 | 72/0.12 | 0.40 | 4.10 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.25 | 1.70 | 82/0.12 | 0.40 | 4.50 | 23.20 | |
| 3C | 30 | 7/0.10 | 0.25 | 0.80 | 48/0.10 | 0.40 | 2.90 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.25 | 0.90 | 54/0.10 | 0.40 | 3.10 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.25 | 1.00 | 58/0.10 | 0.40 | 3.30 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.25 | 1.10 | 60/0.12 | 0.40 | 3.60 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.25 | 1.30 | 72/0.12 | 0.40 | 3.80 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.25 | 1.50 | 82/0.12 | 0.40 | 4.20 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.25 | 1.70 | 96/0.12 | 0.40 | 4.70 | 23.20 | |
| 4C | 30 | 7/0.10 | 0.25 | 0.80 | 54/0.10 | 0.40 | 3.10 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.25 | 0.90 | 30/0.10 | 0.40 | 3.20 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.25 | 1.00 | 64/0.10 | 0.40 | 3.60 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.25 | 1.10 | 68/0.12 | 0.40 | 4.00 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.25 | 1.30 | 81/0.12 | 0.40 | 4.40 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.25 | 1.50 | 92/0.12 | 0.40 | 4.80 | 36.70 | |
| 4C | 18 | 34/0.178 | 0.25 | 1.70 | 107/0.12 | 0.40 | 5.40 | 23.20 | |
| 5C | 30 | 7/0.10 | 0.25 | 0.80 | 58/0.10 | 0.40 | 3.30 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.25 | 0.90 | 64/0.10 | 0.40 | 3.50 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.25 | 1.00 | 64/0.12 | 0.40 | 3.90 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.25 | 1.10 | 79/0.12 | 0.40 | 4.30 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.25 | 1.30 | 90/0.12 | 0.40 | 4.70 | 59.40 | |
| 5C | 20 | 21/0.178 | 0.25 | 1.50 | 103/0.12 | 0.40 | 5.10 | 36.70 | |
| 5C | 18 | 34/0.178 | 0.25 | 1.70 | 120/0.12 | 0.40 | 5.90 | 23.20 | |
