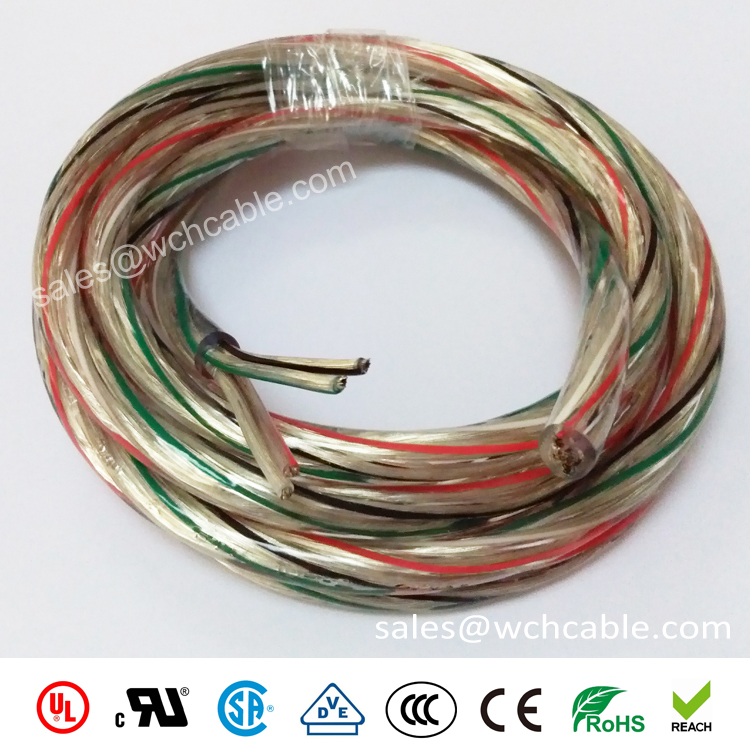

UL20851 Fire Resistant Multi Conductor LSZH Cable

UL20851 Fire Resistant Multi Conductor LSZH Cable

UL20851

  • Place of Origin：Dongguan, China
  • Brand Name：WCH Cable
  • Model Number：UL20851
  • Insulation Material：PE
  • Type：Medium Voltage
  • Application：Industrial Interconnection
  • Jacket：FRPE
  • Conductor：Pure Copper Wire Strands
  • Min. Order Quantity：3050 meters
  • Payment Terms：L/C,D/A,D/P,T/T,Western Union,MoneyGram
Category: Tag:

Description

Style number: UL20851

Rated temperature: 60, 80°C

Rated voltage: 30V

Packaging Details: 305 meters per reel.

Port: Hongkong

UL20851 Fire Resistant Multi Conductor LSZH Cable

Style
Number		 Cores Conductor Insulation
Thickness		 Insulation
Diameter		 Spiral
Shield		 Jacket
Thickness		 Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm No/mm mm mm Ω/KM
UL20851 2C 30 7/0.100 0.23 0.80 ≥65 0.56 2.80 381.00
2C 28 7/0.127 0.23 0.90 ≥65 0.56 3.10 239.00
2C 26 7/0.16 0.23 1.00 ≥65 0.56 3.30 150.00
2C 24 11/0.16 0.23 1.10 ≥65 0.56 3.50 94.20
2C 22 17/0.16 0.23 1.30 ≥65 0.56 3.90 59.40
2C 20 21/0.178 0.23 1.50 ≥65 0.56 4.30 36.70
2C 18 34/0.178 0.23 1.80 ≥65 0.56 4.90 23.20
2C 16 26/0.25 0.23 2.10 ≥65 0.56 5.50 14.60
3C 30 7/0.100 0.23 0.80 ≥65 0.56 3.10 381.00
3C 28 7/0.127 0.23 0.90 ≥65 0.56 3.20 239.00
3C 26 7/0.16 0.23 1.00 ≥65 0.56 3.50 150.00
3C 24 11/0.16 0.23 1.10 ≥65 0.56 3.70 94.20
3C 22 17/0.16 0.23 1.30 ≥65 0.56 4.10 59.40
3C 20 21/0.178 0.23 1.50 ≥65 0.56 4.50 36.70
3C 18 34/0.178 0.23 1.80 ≥65 0.56 5.20 23.20
4C 30 7/0.100 0.23 0.80 ≥65 0.56 4.50 381.00
4C 28 7/0.127 0.23 0.90 ≥65 0.56 4.90 239.00
4C 26 7/0.16 0.23 1.00 ≥65 0.56 5.00 150.00
4C 24 11/0.16 0.23 1.10 ≥65 0.56 5.20 94.20
4C 22 17/0.16 0.23 1.30 ≥65 0.56 5.70 59.40
4C 20 21/0.178 0.23 1.50 ≥65 0.56 6.20 36.70
5C 30 7/0.100 0.23 0.80 ≥65 0.56 4.70 381.00
5C 28 7/0.127 0.23 0.90 ≥65 0.56 5.00 239.00
5C 26 7/0.16 0.23 1.00 ≥65 0.56 5.30 150.00
5C 24 11/0.16 0.23 1.10 ≥65 0.56 5.50 94.20
5C 22 17/0.16 0.23 1.30 ≥65 0.56 6.10 59.40
6C 30 7/0.100 0.23 0.80 ≥65 0.56 5.00 381.00
6C 28 7/0.127 0.23 0.90 ≥65 0.56 5.30 239.00
6C 26 7/0.16 0.23 1.00 ≥65 0.56 5.60 150.00
6C 24 11/0.16 0.23 1.10 ≥65 0.56 5.90 94.20
